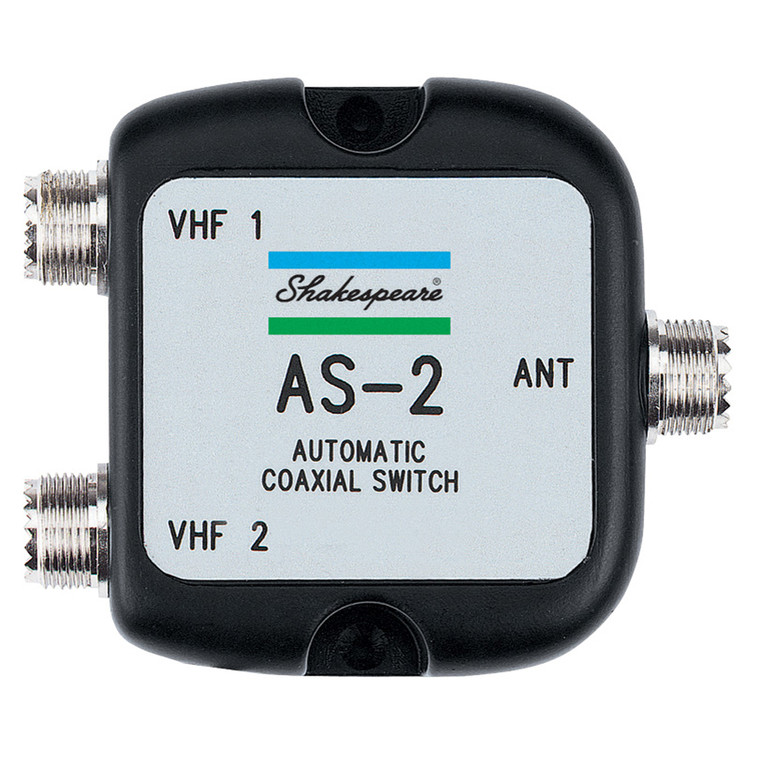

Automatic Coaxial SwitchPart #: AS-2
This innovative switch toggles two radios to one antenna. It mounts out of the way, because you don't have to get at it to use it. When you key the microphone on one of the radios, it switches the antenna to it. Automatically. The radio stays locked onto the antenna until the automatic switch detects a transmit signal from the other radio. Easy!
Specifications:| Frequency: | Up to 600 MHz |
| VSWR | Below 1.2:1 |
| Power Rating | 30W |
| Impedance: | 50 ohms |
| Insertion Loss: | Less than 1.2dB |
| Isolation: | Better than 150dB |
| Connections: | SO-239 type |
| Power Supply: | 12 vDC@200 ma |
| Sensing/Switching Time: | Less than 100 ms (TBD) |
| Construction: | Cast aluminum case |
