Raymarine RayStar 150 GPS Sensor w/Pole Mount (T70327)

Raymarine Raystar 150 GPS Sensor: Reliable Navigation, Every Time

Ensure precise positioning and seamless navigation with the Raymarine Raystar 150 GPS Sensor with Pole Mount. Designed for accuracy and durability, this GPS sensor delivers high-performance location data for both leisure and professional mariners.

Why Choose the Raymarine Raystar 150 GPS Sensor?

• • High Accuracy: Uses advanced GPS technology to provide reliable location data, ensuring optimal navigation and course plotting.
  • Durable Design: Built to withstand harsh marine environments, from high winds to saltwater exposure.
  • Easy Installation: Includes a convenient pole mount for secure and straightforward setup on your vessel.
  • Seamless Integration: Compatible with Raymarine systems for effortless connectivity and operation.

Key Features:

• • High-performance GPS and GLONASS positioning system.
  • Compact, weather-resistant construction.
  • Versatile mounting options for easy customization.

Perfect For:

• • Sailors and boaters who need dependable GPS navigation.
  • Marine enthusiasts looking to upgrade their onboard technology.

Order Yours Today!

Stay on course with confidence—get the Raymarine Raystar 150 GPS Sensor with Pole Mount now.

Features:

• 72-channel GPS receiver
• Fast 10Hz position updates
• Satellite differential GPS-compatible. Space-Based Augmentation System (SBAS) enabled with WASS, EGNOS, MSAS and GAGAN support
• A GNSS receiver with GLONASS compatibility
• Low power consumption: 30mA (1 LEN)
• SeaTalkng and NMEA2000 compatible (using a device net adapter cable)
• Designed for low profile surface mounting or optional pole mounting

Specifications:

• Nominal supply voltage: 12V D.C. Powered by N2K bus
• Operating voltage range: 8 - 32V DC
• Power consumption: 30 mA max (NMEA LEN = 1)
• Operating temperature: -13ºF to 131ºF (-25ºC to +55ºC)
• Relative humidity: max 93%
• Waterproof: IPx6/7
• Supported connection protocols: SeaTalkng: NMEA 2000 (certified) (via DeviceNet adaptor)
• Sensitivity: High sensitivity - acquisition down to -163dBm
• No. of channels: 72
• Positioning System: GPS & GLONASS
• Satellite Differential Type: WAAS (United States); EGNOS (Europe); MSAS (Japan); GAGAN (India)
• Differential acquisition: Automatic
• Position accuracy (95%): <15M
• Position accuracy with SDGPS (95%): <5M
• Speed accuracy (95%): <0.3kt
• Time to first fix from cold start: <2 minutes (< 45 seconds typical)
• Time to first fix from hot start: < 8 seconds -72 hour hold up battery allows for hot start
• Geodetic Datum: WGS84

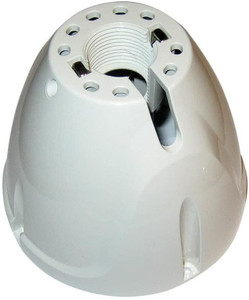

Pole Mount for RS150 GPS Antenna

Raymarine's Pole Mount specifically for the RS150 GPS Antenna. The RS150 has 72 channels and offers faster 10Hz performance and enhanced accuracy. The RS150 is also a GNSS receiver and supports the GLONASS global navigation satellite system.
