HEISE Single Row Slimline LED Light Bar - 32

HEISE LED Lighting Systems
SKU:
86429317370
|
UPC:
86429317370
$366.99
(No reviews yet)
Current Stock:

Sorry we are Out of stock

Out of Stock

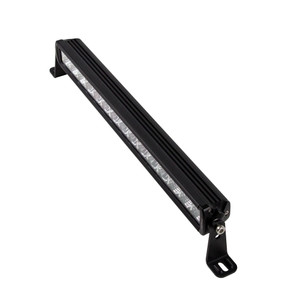

Single Row Slimline LED Light Bar - 32"

SPECS

  • Input Voltage: 10–30V DC
  • Wattage: 72W (24–3W OSRAM LEDs)
  • Raw Lumens: 5760
  • LUX @ 10M: 2200
  • Color Temperature: 6000K
  • Beam Pattern: Combo/Flood(90°)/Spot(8°)

CONSTRUCTION

  • Housing Material: Powder Coated Aluminum
  • Housing Color: Black
  • Membrane: Gore™
  • Lens Material: PC
  • Mounting Bracket: Die–cast Aluminum
  • Mounting: Side and Bottom
  • Hole Dimensions:
  • Brackets turned inward – 31.75"
  • Brackets turned outward – 33.75"
  • Mounting Bolt Drill – .25"
  • Height of Light Bar Itself: 2"
  • Depth of Light Bar Itself: 2"
  • Electronics: Integrated–Epoxy Encapsulated
  • Hardware: Stainless 316

OPERATION

  • Operating Temperature: –40°C to +60°C
  • Current Consumption: 4 amps @ 13.8 volts
  • IP Rating: IP67
  • Protections: Reverse Polarity
