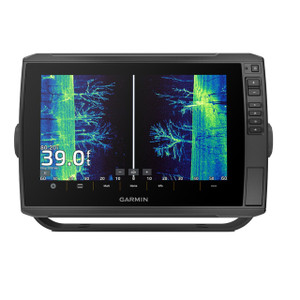

Garmin ECHOMAP™ Ultra 2 106sv w/GT56UHD-TM Transducer - Garmin Navionics+ (010-02880-01)

ECHOMAP™ Ultra 2 106sv with GT56UHD-TM Transducer - Garmin Navionics+
With big, crisp, sunlight-readable touchscreen displays, these versatile chartplotters put a world of fish-finding capability at the angler's fingertips. This display has built-in Garmin Navionics+™ mapping, and the transducer bundle adds Ultra High-Definition scanning sonars as well as CHIRP traditional sonar.
Features:
•   ECHOMAP™ Ultra 2 106sv with Garmin Navionics+ Inland & Coastal Mapping
•   GT56UHD-TM transducer
•   10” touchscreen
•   Supports livescope™ sonar, and more
•   Wirelessly network; share sonar, waypoints, and routes.
•   Capture screen recordings to share fish catches
•   Multi-band GPS for improved position accuracy
Livescope™ Sonar Support
The ECHOMAP Ultra 2 series supports the full lineup of LiveScope live-scanning sonar products (transducers sold separately).
Built-in UHD Sonar
Select models are bundled with a GT56 transducer, which provides Garmin CHIRP traditional sonar and Ultra High-Definition ClearVü™ and SideVü™ scanning sonars for photo-like images of what’s beneath the surface.
Vivid Color Palettes
High-contrast, vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.
Preloaded Charts
Experience unparalleled coverage and detail. with built-in Garmin Navionics+ mapping, which includes a 1-year subscription for daily updates, depth range shading, and more.
Premium Map Upgrades
Bring a fresh new look and feel to the chartplotter with optional Garmin Navionics Vision+™ premium mapping (sold separately), featuring high-resolution relief shading, satellite imagery and more.
Wireless Networking
If users have another compatible ECHOMAP Ultra 2 or ECHOMAP UHD2 chartplotter on the boat, users can wirelessly share information — such as sonar, waypoints and routes — with them.
Stay Connected
Multi-Band GPS
Get improved position accuracy with multi-band GPS
NMEA 2000® Network Compatibility
Connect to heading sensors, autopilots, Fusion-Link™ audio systems, and more.
ActiveCaptain® App
Pair with the free smart-device app for software updates, screen recording, Garmin Quickdraw™ Community data, and more.
Force® Trolling Motor
Wirelessly connect to a Force trolling motor to navigate to waypoints, draw and follow routes, and more.
Take It With You
The quick-disconnect bail mount lets users quickly install and remove the unit.
In the Box:
•   ECHOMAP Ultra 106sv with optional Garmin Navionics+
•   GT56UHD-TM transducer
•   Power/data cable
•   Bail mount with quick-release cradle
•   Protective sun cover
•   Hardware
•   Documentation
•   Specifications
General:
•   Dimension: 11.6" x 7.7" x 3.9" (29.5 x 19.5 x 9.8 cm)
•   Weight: 4.0 lbs (1.8 kg)
•   Waterproof: IPX7
•   Touchscreen: Yes
•   Display Type: WXGA, IPS
•   Display Size: 8.5" x 5.4"; 10" diagonal (21.7 x 13.6 cm; 25.4 cm diagonal)
•   Display Resolution: 1280 x 800 pixels
•   Mounting Options: Bail or flush
•   Input: Touchscreen with Keyed Assist
•   Maps & Memory:
•   Accepts Data Cards: 2 microSD cards
•   Waypoints: 5000
•   Track Points: 50,000
•   Tracks: 50 saved tracks
•   Navigation Routes: 100
Sensors:
•   GPS: Yes
•   GLONASS: Yes
•   Galileo: Yes
•   BeiDou: Yes
•   Has Built-In Receiver: Yes
•   Receiver: 10 Hz
•   NMEA 2000 Compatible: Yes
•   NMEA 0183 Compatible: Yes
•   Supports WAAS: Yes
•   Supports Multi-Band, Multi-Constellation GPS: Yes
Built-In Maps:
•   Built-In Auto Guidance+: Yes
•   Garmin Navionics+ Inland & Coastal: Yes (see Additional)
•   Tide Tables: Yes (see Additional)
Optional Map Support:
•   Garmin Navionics+™: Yes
•   Garmin Navionics+ Vision+™: Yes
•   TOPO 100k: Yes
•   Standard Mapping: Yes
•   Garmin Quickdraw Contours: Yes
Chartplotter Features:
•   AIS: Yes
•   DSC: Yes
•   Supports Fusion-Link™ Compatible Radios: Yes
•   ActiveCaptain® Compatible: Yes
•   Sailing Features: Yes
Electrical Features:
•   Power Input: 9 to 18 VDC
•   Typical Current Draw at 12 VDC: 2.5 A
•   Maximum Current Draw at 12 VDC: 5.0 A
•   Maximum Power Usage at 10 VDC: 36 W
Sonar Features:
•   Displays Sonar: Yes
•   Power Output: 600 W
•   Traditional Sonar (Dual Frequency/Beam): Built-in (Single Channel Chirp, 70/83/200 Khz, L, M, H Chirp)
•   ClearVü: Built-in 260/455/800/1000/1200 kHz
•   SideVü: Built-in 260/455/800/1000/1200 kHz
•   Panoptix™ Sonar: Yes
•   Livescope: Yes
Connections:
•   NMEA 2000® Ports: 1
•   Garmin Marine Network Ports: 2 (Large Connector)
•   12-Pin Transducer Ports: 12-Pin Scanning Sonar
•   ANT+ (Connectivity): Yes
•   Garmin Wi-Fi Network (Local Connection): Yes
