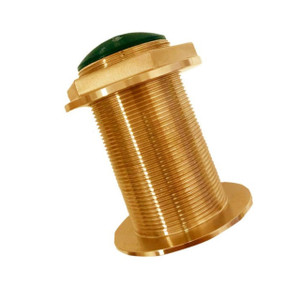

Echonautics BT70D600 50/200kHz Bronze Thru-Hull Transducer |12 degree Tilted Element
Echonautics
$295.00
Echonautics BT70D600 50/200kHz Bronze Thru-Hull with 12 degree Tilted Element
Model: BT70D600-12
Get target detail in shallow water and good deep-water bottom tracking.
this series is designed to minimize drag and to perform at high speeds.
Specifications
Function Depth and temperature
Frequency 50/200kHz
Mount type Thru-hull
Tilt/deadrise 12° tilted for 8° to 15° hull deadrises
Material Bronze
RMS Power 600 watts
Beam width 42° / 11° -3db
Depth Max@50kHz = 1200ft
Max at 200kHz = 700ft
Temp sensor NTC
Acoustic window Urethane
Weight 54oz
Cable length 27ft
Hole diameter 2.38"
