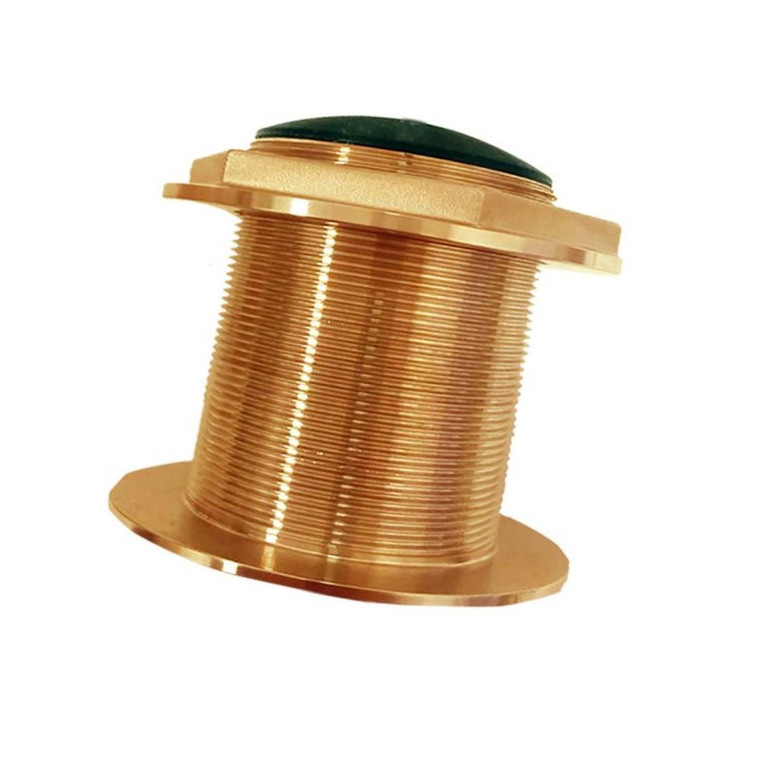

Echonautics Transducer 130-210kHz 1kW High CHIRP 12° Tilted Element

Echonautics BT87H1KW 130-210kHz 1kW High CHIRP 12° Tilted Element
Model: BT87H1KW-12
•       Superior shallow-water performance and bottom detail
The Echonautics BT87H1kW is a low-profile thru hull CHIRP transducer designed to minimize drag and to perform at high speeds.
Thanks to the narrow beamwidth, it is excellent for pinpointing fish holding tight to reefs, wrecks, and other structures.
Specifications
•       Function   Depth and Temperature
•       Frequency CHIRP 130 - 210 kHz
•       Tilt/deadrise        12° tilted version: for 8° to 15° hull deadrise
•       Material    Bronze
•       RMS Power          1 kW
•       Beamwidth           13° to 8° @-3db
•       Depth        Max 304 m (1,000 ft)
•       Temp. sensor       NTC
•       Acoustic window Urethane
•       Cable length         9 m (30 ft)
•       Hole diameter      87.6 mm (3.45")
