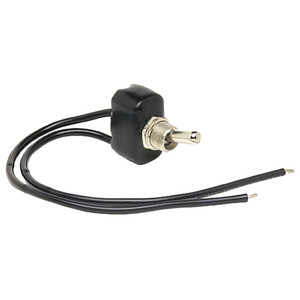

Cole Hersee Heavy-Duty Toggle Switch SPST On-Off 2-Wire

Heavy-Duty Toggle Switch SPST On-Off 2-Wire

Toggle Switches are designed for universal applications within harsh environments. Their mounting, body, and actuator features are designed for ease-of-use and extended product lifecycle. The Standard Heavy Duty Toggle Switch Series is our most robust series of toggle switches, available in several configurations of actuators and circuitries.

Specifications:

• Mounting: Nickel Plated Brass Face Nut through 15/32 (11.90mm) Panel Hole *Part Number 5520: Black Finished Face Nut
• Voltage Ratings: 10A at 36V DC/15A at 24V DC/25A at 12V DC
• Current Rating (Continuous) in Amps: 10
• Voltage Rating (Max): 36
• Circuitry: SPST
• Input Terminals: 2 Leads (203mm 16AWG Stripped) 1 Plug - 2 Leads (203mm 6AWG Stripped) 1 Plug
• Housing: Weather-Resistant PVC-Coated Plasticized Housing
• Actuator: Standard Toggle
• Actuator Details: Nickel-Plated Brass - 17.4625
• Panel Thickness: Up to 1/4 (6.35mm) thick
• Contact Material: Silver
• Recommended Torque: On - None - Off
